This head turner delivers on more than just style: it can help you carry cargo, passengers, and even your morning joe. Factor in over 330 possible accessory combinations, and you can customize this moped-style ebike to your heart’s content.
Size guide
Slide the scale for your bike inseam measurement
Katya's measurements: bike inseam 30"/ 76cm, height 5'4" / 163cm
All fun, no hassle. The single-speed drivetrain, push-button control pad, and accessible step-thru frame get you around stress-free.
Measuring 15 mm thicker than its predecessor, the included saddle keeps you riding longer and happier.
Confidently zip around bends and curves with a relaxed head-tube angle that increases your stability.
Hundreds of accessory combinations make it easy to personalize your RadRunner to your exact taste and needs.
Our most popular accessories
Explore our first-class safety features for all rider types.
We go the extra mile.
Rad frames are designed to meet international standards, including the guidelines set by the U.S Consumer Product Safety Commission and European Committee for Standardization.
See and be seen.
Safety is paramount to Rad engineers. Reflective striping is incorporated on tire sidewalls, plus the LED headlight and an integrated taillight with brake-light indicator keep you visible to all.
Precision in practice.
Every bike, without exception, receives a thorough 50-point inspection. How in-depth is it? Even the screws are double-checked.
Brake confidently in any weather conditions.
Ride rain or shine. Every bike comes with brakes tested for all-weather stopping ability.
672 Wh
48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
Rad Power Bikes controller, 48V, 750W
Rad Power Bikes custom LED display

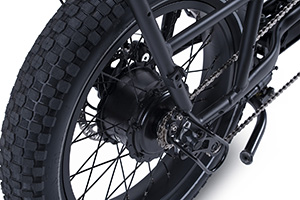

750W brushless geared hub motor, 5:1 planetary gear reduction. Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.
Front: Standard Rad Power Bikes LED headlight

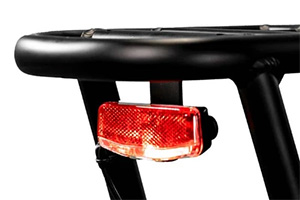

Rear: Integrated taillight with brake light and flash mode
Intelligent 4 level pedal assist with low-profile cadence sensor
25-45+ miles per charge (estimate)
Half twist grip throttle
Water resistant connectors and wiring harness
To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Tektro Aries caliper (MD-M300)
Aluminum alloy comfort grip levers with motor cutoff switch
Semi-Metallic compound (Tektro P20.11)
Tektro 180 mm front and rear
KMC Z7
53T chainring; 170 mm crank length; square-taper J.I.S.; dual-sided aluminium chainring guard
n/a
Available for purchase separately
Rigid steel fork
6061 aluminum
16 tooth freewheel
Single speed, 53-16
Durable ergonomic rubber grips
Aluminum high rise, 686 mm wide, 10" rise
Semi-integrated, 1-1/8" straight steerer tube

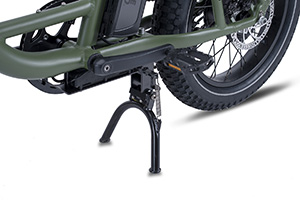

Dual leg, spring loaded, steel
composite platform pedals with reflectors, CrMo axle, standard 9/16" x 20 TPI threading
Front: Optional
Rear: Integrated, 120 lb (54kg) carrying capacity, 25.5 mm tubing diameter
Aluminum, 36 hole
Rim width: 55 mm
Custom Rad Power Bikes moped-style saddle with extra padding, fixed angle, and integrated steel seat post
390 mm x 27.2 mm
Quick release
N/A
Rear: 12-gauge stainless steel, black
50 mm + 30º (15 mm rise)

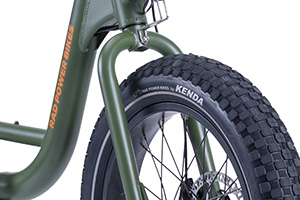

Exclusive Rad Power Bikes by Kenda K-Rad 20" x 3.3", 4-ply with K-Shield puncture-resistant liner *tires received may not include branding
To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
| Title | Text |
|---|---|
| Rider Heights | 4'11" - 6'2" (with approx. inseam between 26.75"-37". See sizing section below.) |
| Frame Size | 18" |
| Handlebar Height | 42-45" |
| Handlebar Reach | 15" |
| Seat Height |
25.75" - 37" *Measured from bottom of the pedal stroke |
| Standover Height | 16.5" |
| Total Length | 68" |
| Wheelbase | 45" |
| Dropout Width |
Front: 135 mm Rear: 167 mm |
| Bottom Bracket Shell Width |
100 mm shell, 164 mm spindle Square taper bottom bracket |
| Seat Tube Length | 18" |
| Top Tube Length | N/A |
| Headtube | 8" |
| Chainstay | 20" |
| Handlebar Width | 686 mm (27") |
| Crank Length | 170 mm |
| Seatpost Diameter | 27.2 mm |
| Max Tire Width | 4.0" |
| Bike Weight |
Total: 65 lb (29.5 kg) Battery: 7.7 lb (3.5 kg) |
| Payload Capacity | 300 lb (136 kg) |
Your “bike inseam” — or inside leg length — is the distance between your body where it sits on your bike saddle and the ground.
It’s typically an inch or two longer than the length of your trousers, but measure to be sure.
You’ll use this number on the chart to get a feel for how the different models will fit you.
Gather the tools needed:
Medium-width hardcover book
Tape measure
A wall you can stand against
A trusted friend or relative
Wearing your regular riding shoes and with your back to the wall, stand with your feet spread so there is about 7 inches between them - this is about the distance apart your feet would be when straddling a bike with your feet on the ground (standover height).
Place a hardcover book against the wall with the spine of the book facing upward. Slide the book upwards towards your groin until it is solidly against your body. This may be a bit awkward, but is way more comfortable — and safer! — than trying to ride a bike that is too big.
If you have a buddy helping you, get them to measure from the floor to the top of the book spine while you hold the book in place. If you’re going it alone, carefully hold the book in place and measure from the ground to the top of the book spine.
.png?v=0&options=w_200)

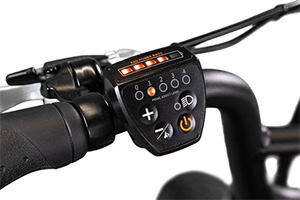

Control panel that includes pedal assist controls and battery charge levels.
