Name: Radster™ Trail Electric Off-Road Bike
Brand: Rad Power Bikes
SKU: 109-00005
Price: 2199.0 USD
Availability: InStock
Rating: 4.6 (176 reviews)

Right side view of a Radster Trail electric commuter bike, size regular in copper red

Right side view of a Radster Trail electric commuter bike, size regular in fir green

Right side view of a Radster Trail electric commuter bike, size large in copper red

Right side view of a Radster Trail electric commuter bike, size large in fir green

Top Speed

28 mph

Range

65+ miles

Power

750W

Payload

370 lb

Safety

UL Certified

Radster™ Trail Electric Off-Road Bike

4.6 176 Reviews

$2,199

Ships within 2 business days

Off-road fun meets eye-catching style with our svelte all-terrain ebike.

Select Color: Copper Red

Select Frame Style: Regular

Size Guide

Regular
Large

Free shipping*

2-year warranty

30 days return

Pro Build Available

Scheduling options available in checkout. Learn more

*Shipping fees and restrictions may apply in Alaska and Hawaii, see checkout.

Radster™ Trail Electric Off-Road Bike

Overview Safety & Quality Specs & Details Reviews

Rugged good looks are just the beginning.

The Radster Trail is an electric off-road bike with the power to do anything, and the range to go anywhere. The 100 Nm motor makes quick work of hills, the 28 mph top speed promises fast-paced fun, and with two frame sizes for a personalized fit, it’s so comfortable that you’ll barely feel like you’re roughing it.

Each Piece Intentionally Designed for a Purpose

Feel natural

Experience smooth rides on any terrain with a torque sensor that responds to the way you pedal, added power for effortless hill climbing, and hydraulic disc brakes that bring you to a prompt, graceful stop.

Ride the way you want

Blaze your own trail. Versatile mid-fat tires glide over mountain paths and uneven pavement, while the adaptable class 1, 2, and 3 speed settings let you set your own pace. Add in its two frame sizes, and the possibilities are endless.

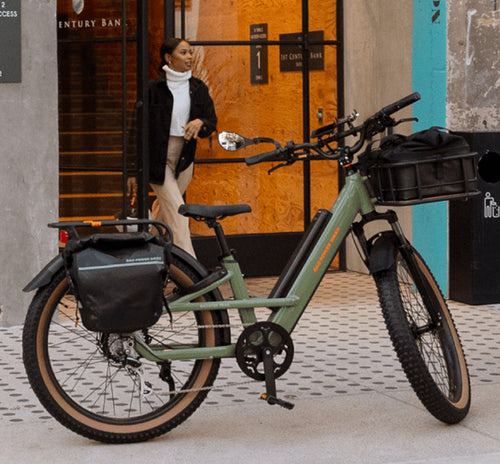

Rain or shine

No more rainchecks. With industry-leading IPX6 weather-protection and a brighter 200 lumen headlight, the Radster Trail is your go-to rainy day companion.

Radically safe

Stay safe in the saddle with rear-facing turn signals. When the ride’s over, secure your ebike by locking the controls with a fob or personal security code. And for ultimate peace of mind, the Safe Shield battery is outfitted with thermal-resistant technology.

Dive Deeper

Select a feature to explore in detail.

Right side view of the Copper Red Radster Trail electric off-road bike in size large

Engineered to Put Safety First

Explore our first-class safety features for all rider types.

Safety Certified

Visibility

All-Weather Support

Secure Rides

Engineered to Put Safety First

Explore our first-class safety features for all rider types.

Raising the bar

All Rad ebikes are either UL Certified or tested by ACT to comply with UL 2849.

This means our bikes and electric systems have undergone rigorous testing to meet safety standards set by UL, a respected third-party organization.

Although U.S. guidelines don’t currently require ebikes to meet UL Certification, we go the extra mile to ensure our riders feel safe in the saddle.

Learn More

All eyes on you

This model features a bright 200 lumen headlight for safer night riding and rear-facing turn signals that let cars, pedestrians, and fellow cyclists know your next move.

Ride rain or shine

Radster Trail is built to handle the rain. With industry-leading IPX6 weather-protection, they can withstand high-pressure, heavy water splashes. And for added safety, they’re equipped with hydraulic disc brakes to ensure all-weather stopping ability.

Reliability on wheels

Keep the ride going. This model features a thru axle to ensure a strong, safe, and secure wheel system.

Raising the bar

All Rad ebikes are either UL Certified or tested by ACT to comply with UL 2849.

This means our bikes and electric systems have undergone rigorous testing to meet safety standards set by UL, a respected third-party organization.

Although U.S. guidelines don’t currently require ebikes to meet UL Certification, we go the extra mile to ensure our riders feel safe in the saddle.

Learn More

All eyes on you

This model features a bright 200 lumen headlight for safer night riding and rear-facing turn signals that let cars, pedestrians, and fellow cyclists know your next move.

Ride rain or shine

Radster Trail is built to handle the rain. With industry-leading IPX6 weather-protection, they can withstand high-pressure, heavy water splashes. And for added safety, they’re equipped with hydraulic disc brakes to ensure all-weather stopping ability.

Reliability on wheels

Keep the ride going. This model features a thru axle to ensure a strong, safe, and secure wheel system.

Specs & Details

Battery

15Ah 720 Wh Safe Shield Advanced Semi-Integrated Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271
Charger

48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
Class

Class switchable 1 to 3. Ships in Class 2 status.
Display

Rad custom color display. See Display section below for details.
Hub Motor

Rear hub 750W, 100 Nm torque
Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.
Lights

Auto-on feature
Front: 450 lumens LED headlight with built-in reflector
Rear: Integrated taillight with brake light and turn signals
Pedal Assist

Torque sensor, 5 PAS Levels, plus a zero assist option
Range

Estimated 25-65 miles per charge
Throttle

Half twist throttle
UL Status

UL Certified to UL 2849 and UL 2271
USB Ports

One USB-C port, located on remote

To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.

Bell

Yes
Brake System

Rad Power Bikes approved hydraulic disc brakes
Brake Pads

Tektro semi-metallic P20.11
Brake Rotors

180mm x 1.8mm
Crank Set

50T with dual sided chain ring cover, 170mm crank arms
Derailleur

Shimano 8-speed
Fenders

Front and full rear alloy mudguard
Fork

Hydraulic suspension fork, 80mm travel, tapered steerer tube, thru axle
Frame

Aluminum
Freewheel/Cassette

8-speed freewheel, 11-34T
Gearing

1x8 speed
Grips

Ergonomic comfort grips
Handlebar

Aluminum, 710 mm wide
Kickstand

Side mounted, adjustable angle kickstand
Pedals

Alloy Platform, Boron axle with reflectors, standard 9/16" X 20 TPI threading
Rear Rack

Integrated, 55 lb (25 kg) carrying capacity
Saddle

Padded sport saddle with shallow anatomic cut-out and contoured sides
Seatpost

Regular: 350 mm x 31.6 mm
Large: 400 mm x 31.6 mm
Seatpost Clamp

38.1 mm
Shifter

Shimano 8-speed thumb shifter
Stem

40mm A-head
Tires

Kenda Havok 27.5" X 3.0" with puncture protection and tan sidewall

To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.

Rider Heights

4'11"-5'8" (150-173 cm)
Bike Weight

77.5 lb (35.2 kg), 68.5 lb (31.1 kg) with battery removed
Payload

370 lb, 290 lb. max rider
Rear Rack Payload

55 lb (25 kg)
Handlebar Height

44.5" (113.0 cm)
Reach

15.2" (386 mm)
Seat Height

From ground: 30.5" - 37.5" (78.7 - 95.3 cm)
From pedal bottom stroke: 25" - 33" (64 - 84 cm)
Standover Height

21" (53.3 cm)
Stepover Height

20" (50.8 cm)
Total Length

74" (188 cm)
Wheelbase

46.6" (118.3 cm)
Seat Tube Length

15.0" (380 mm)

Rider Heights

5'7"-6'4" (170-193 cm)
Bike Weight

78 lb (35.4 kg), 69 lb (31.3 kg) with battery removed
Payload

370 lb, 290 lb. max rider
Rear Rack Payload

55 lb (25 kg)
Handlebar Height

45.25" (114.9 cm)
Reach

15.6" (397 mm)
Seat Height

From ground: 31.5" - 39" (80 - 99 cm)
From pedal bottom stroke: 27" - 35" (69 - 89 cm
Standover Height

24" (61 cm)
Stepover Height

24" (61 cm)
Total Length

76" (193 cm)
Wheelbase

47.4" (120.3 cm)
Seat Tube Length

16.8" (426 mm)

Bike inseam sizing chart (Inches)

23 - 25"

25 - 33"

33+"

You will not be able to ride the bike comfortably.

You will be able to pedal and stand over the frame comfortably.

Your legs may be too long to get full leg extension when pedaling.

Bike inseam sizing chart (Inches)

25 - 27"

27 - 35"

35+"

You will not be able to ride the bike comfortably.

You will be able to pedal and stand over the frame comfortably.

Your legs may be too long to get full leg extension when pedaling.

What to Measure

Your “bike inseam” — or inside leg length — is the distance between your body where it sits on your bike saddle and the ground.

It’s typically an inch or two longer than the length of your trousers, but measure to be sure.

You’ll use this number on the chart to get a feel for how the different models will fit you.

How to Measure

Gather the tools needed:

Medium-width hardcover book
Tape measure
A wall you can stand against
A trusted friend or relative

Wearing your regular riding shoes and with your back to the wall, stand with your feet spread so there is about 7 inches between them - this is about the distance apart your feet would be when straddling a bike with your feet on the ground (standover height).

Place a hardcover book against the wall with the spine of the book facing upward. Slide the book upwards towards your groin until it is solidly against your body. This may be a bit awkward, but is way more comfortable — and safer! — than trying to ride a bike that is too big.

If you have a buddy helping you, get them to measure from the floor to the top of the book spine while you hold the book in place. If you’re going it alone, carefully hold the book in place and measure from the ground to the top of the book spine.

Class level

Choose speed settings for your ride:
Class 1: up to 20 mph, throttle only works while pedaling.
Class 2: up to 20 mph while pedaling or throttling.
Class 3, Limited: up to 25 mph while pedaling.
Class 3: up to 28 mph while pedaling.

Remember: adhere to posted speed limits and check local regulations for any speed or ebike class restrictions on the road or trail you're using.
Control lock

For an extra layer of security, lock and unlock the controls with the touch of a fob or a personal security code
Speedometer

Fast and Curious? The speedometer will tell you your current speed.
Odometer

Track the distance you’ve racked up, either by trip or through the bike’s entire lifespan.
Estimated remaining range

Is it time to recharge? To help you keep track, this displays your remaining battery life in either percentage or remaining miles.
Trip time

Did your trip feel like it was just half an hour, or did time fly by? This display will show you the time you spend on each outing. Be sure to reset your trip odometer before a ride you want to track.
Pedal assist level

The higher the number, the more the motor will boost you when you pedal. This shows what level you’re on, from 0 to 5.
Motor watts

Check out how much power the motor is supplying at any given time.
Headlight, tail light, and rear turn signals

It’s always a bright idea to make sure your lights are on and operating.

Note: Rear turn signals can be manually turned off or will turn off automatically two minutes into use
USB charge indicator

Charging your device? This will confirm if your phone (or tablet, or smartwatch, or headphones, or …) is getting the juice it needs.
